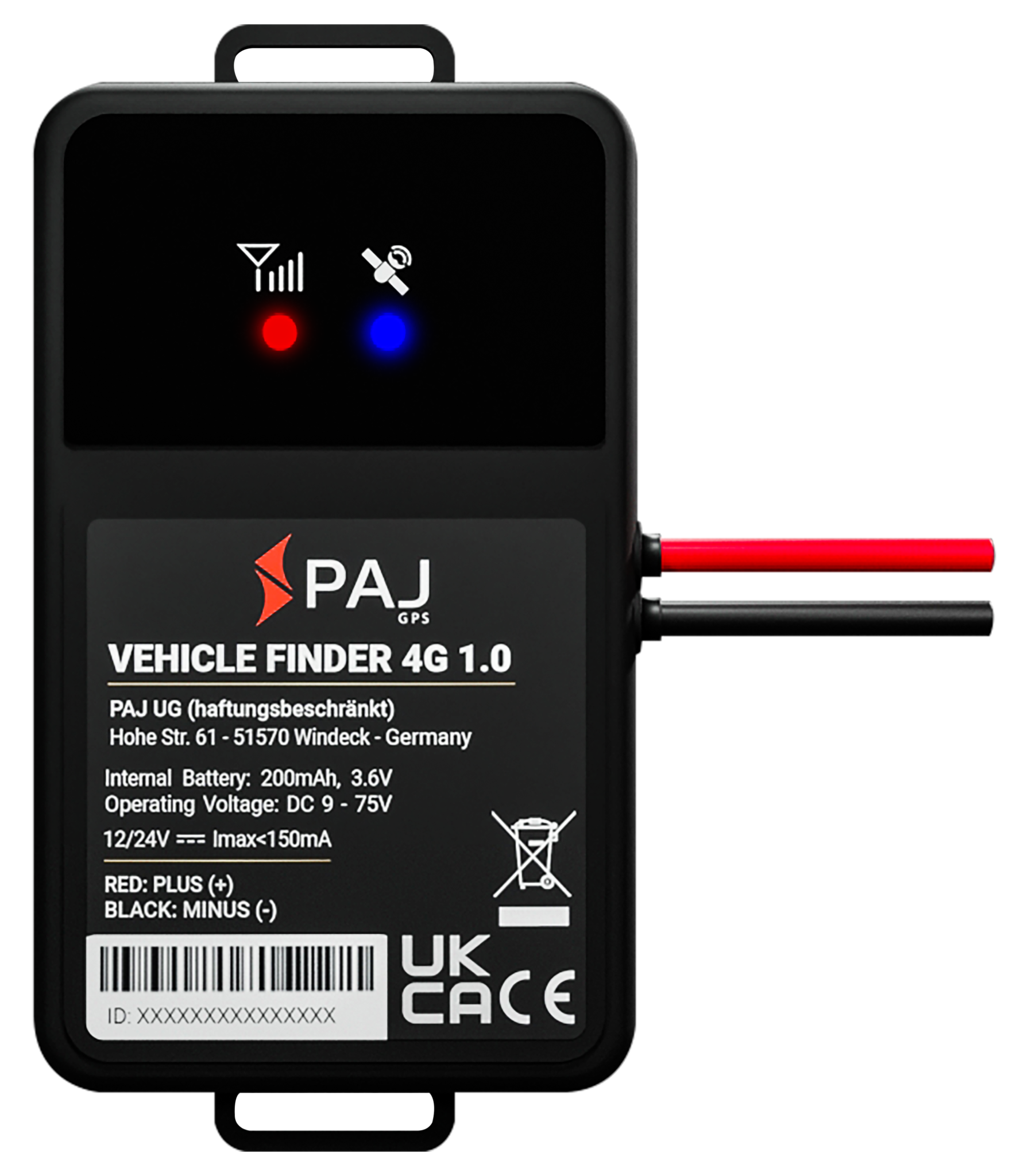

Vehicle Finder 4G 1.0

$39.99

NEW generation of GPS trackers with 4G network coverage

  • Suitable for cars, trucks, caravans
  • Power supply via a car battery (9-75V)
  • Alarm message as soon as the GPS Tracker is disconnected from the external power supply
  • Waterproof according to IP67



Vehicle Finder 4G 1.0

$39.99

Description

The NEW generation of GPS trackers

With the aim of offering you the best technology, the new generation of our GPS trackers supports the 4G network. This way we can guarantee you a higher network coverage and a future-proof use of the GPS tracker.

Our complete set incl. FINDER Portal

A FINDER can only be used in conjunction with a subscription . All the benefits of our GPS trackers can be used for an unlimited periodfrom just $4.17 per month. With the special built-in M2M SIM card, your GPS device will always find the best connection in over 100 countries. Without further additional charges abroad or range restrictions. The M2M SIM card is already in the FINDER.

Highlights

Live Location

Track LIVE where your tracker is right now.

Alarms via e-mail and push message

Immediate alarm message on your terminal.

Routes of the last 100 365 days available

Conveniently view the routes travelled in retrospect.

The VEHICLE Finder 4G 1.0 at a glance

All around carefree

Simply register online and you’re done! The SIM card and everything else you need to get started is included.

No annoying loading

Thanks to the direct power connection, the VEHICLE Finder 4G 2.0 is always ready for use when you need it.

Would you like more information about installing the device? Here you will find detailed instructions for installing the VEHICLE Finder 4G 1.0.

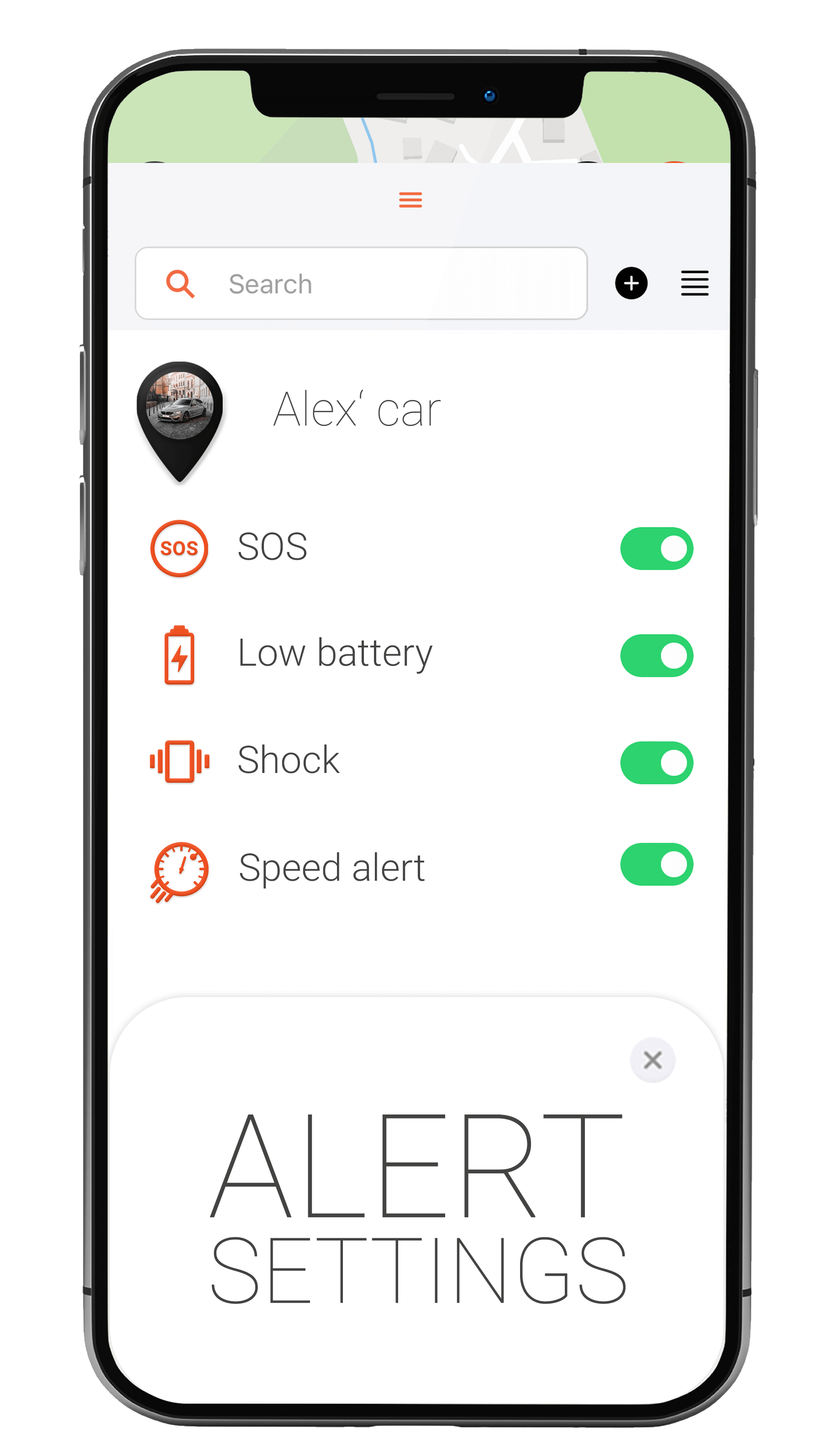

Alert functions

Motion / vibration alarm

Alarm signal as soon as the GPS Tracker is shaken or moved.

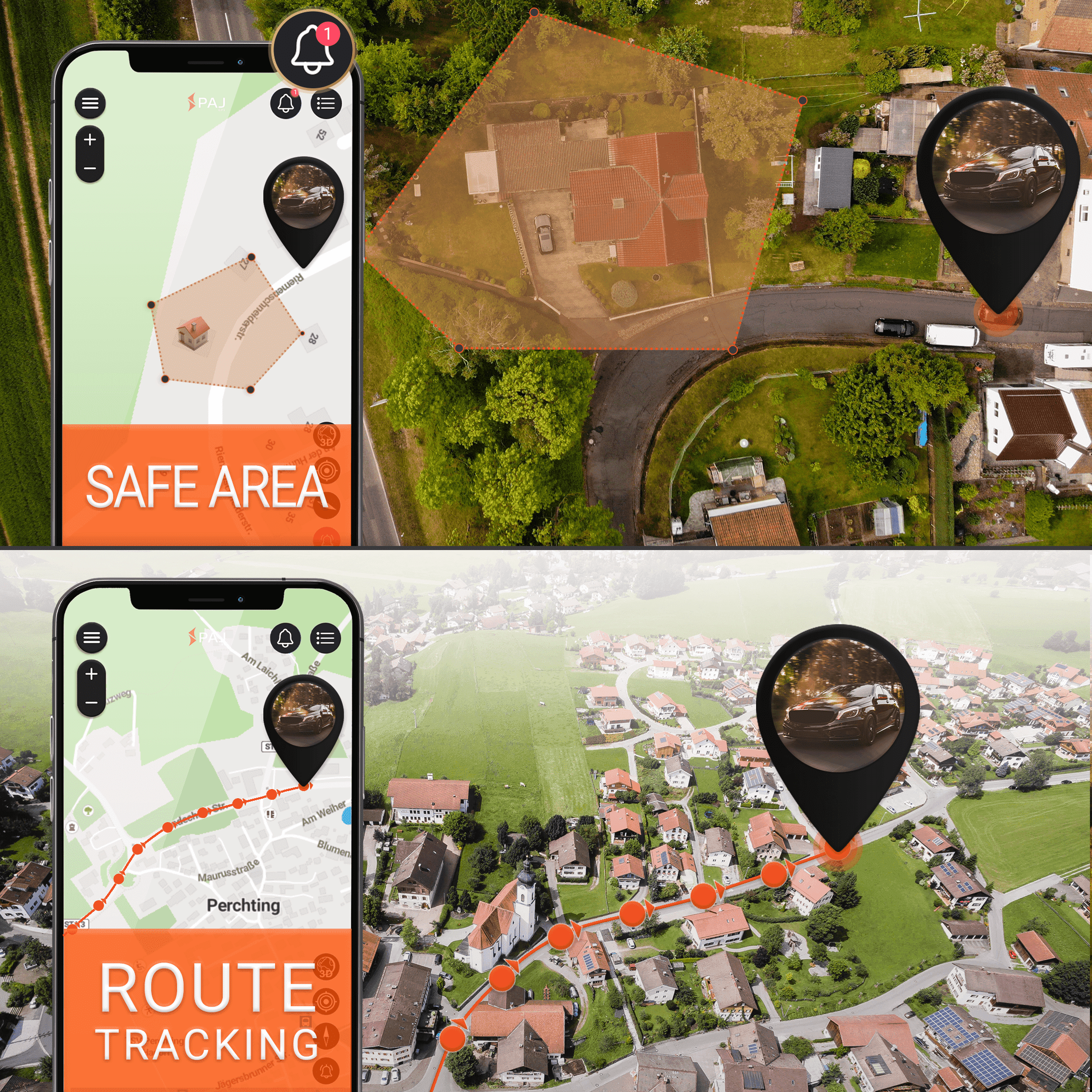

Radius alert

Alarm message as soon as the GPS Tracker leaves the defined radius.

Speed alert

Alarm message as soon as the GPS Tracker exceeds a certain speed.

Power interruption alarm

Alarm message as soon as the GPS Tracker is disconnected from the external power supply.

Ignition alert

Alarm message as soon as the ignition is activated or deactivated.

FINDER Portal licence variants

FOR 1 MONTH
6,99 $ / month
Monthly subscription
LIVE Tracking
Route memory: 365 days
Cancellable monthly
Less effort - everything from a single source?
SIM card included?
App included?
FOR 1 YEAR
4,99 $ / month
Annual subscription: $59.88 on activation
LIVE Tracking
Route memory: 365 days
Annually cancellable
Less effort - everything from a single source?
SIM card included?
App included?
for 2 years
4,17 $ / month
2-year subscription: $99.99 on activation
LIVE Tracking
Route memory: 365 days
Cancellable every 2 years
Less effort - everything from a single source?
SIM card included?
App included?
Important noteThe purchase of a licence is only possible after receipt of the GPS tracker! The respective ID number, which is located on the tracker, is required for licence activation.

Technical data

POWER SUPPLY
Directly to the car battery or vehicle power. Supports a 9-75V DC supply

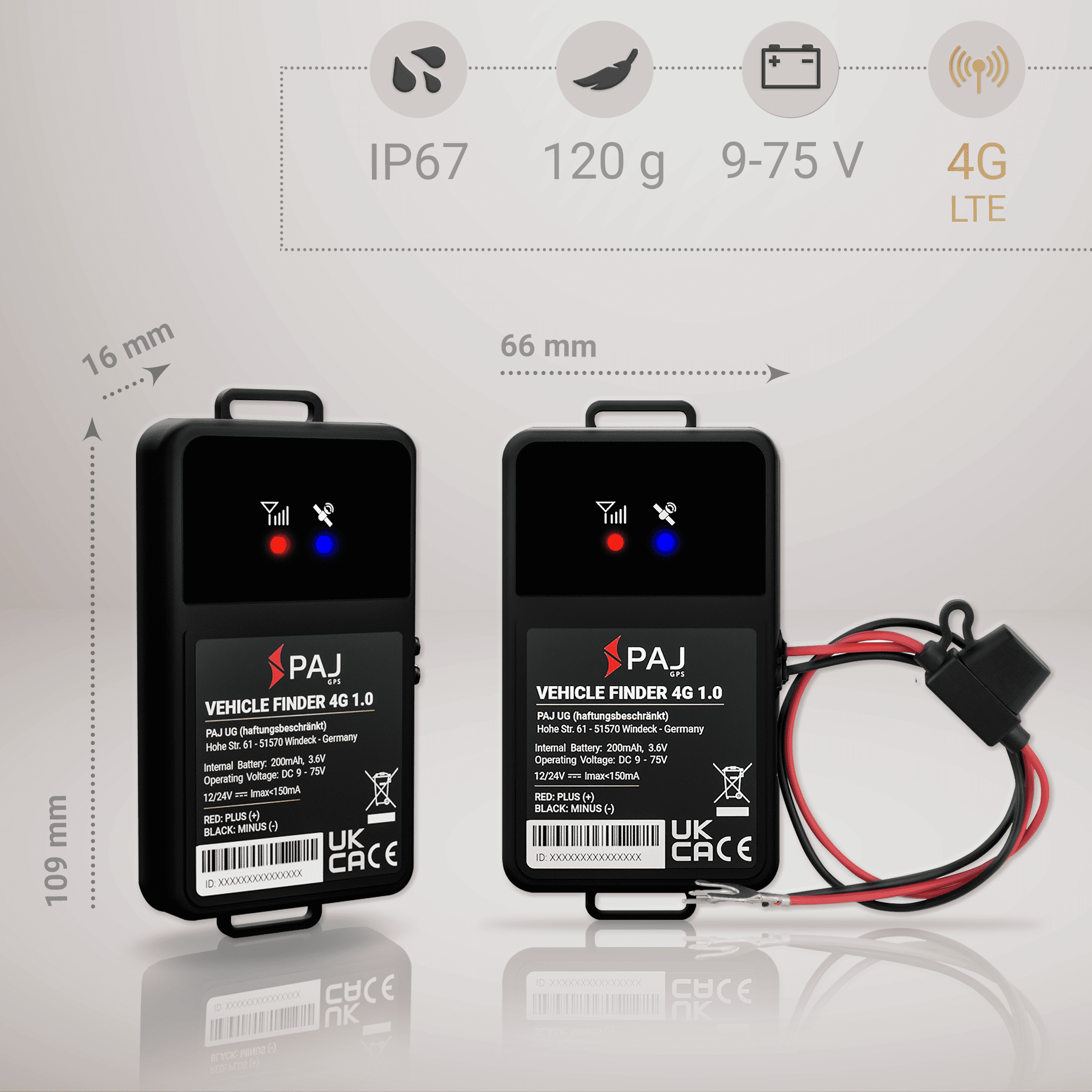

DIMENSIONS
Without bracket: 109 mm X 66 mm X 16 mm without cable
With bracket: 123 mm X 66 mm X 16 mm without cable
WEIGHT
120 g
GPS-ACCURACY
Up to 3 metres depending on the GPS reception of the finder
CABLE LENGTH
0,40 m
STANDBY TIME OF THE INTERNAL BATTERY
Running time up to 12 hours
INTERNAL BATTERY
3,6 V 200 mAh NiMH
TIME TO LAUNCH
Cold start approx. 30 sec.
standby approx. 30 sec.
in operation approx. 1 sec.
CHARGER
No charger, as direct connection to the car battery 9-75V DC
NETZWORK
LTE-FDD / LTE-TDD / GSM / GPRS / EDGE
GPS-RECEPTION
-162 dBm
LTE NETZWORK

LTE-FDD:
B1/B2/B3/B4/B5/B7/B8/B12/B13/
B18/B19/B20/B25/B26/B28/B66

LTE-TDD:

B34/B38/B39/B40/B41
LTE DATA TRANSFER
eMTC (DL) 375 Kbps / eMTC (UL) 375 Kbps
GPS-CHIP
AT6558R
GSM BAND
850 / 900 / 1800 / 1900 MHz
STORAGE TEMPERATURE
from -30°C to +80°C
OPERATING ENVIRONMENT
from -20°C to +75°C
HUMIDITY
10% – 85%
WATERPROOF
according to IP67

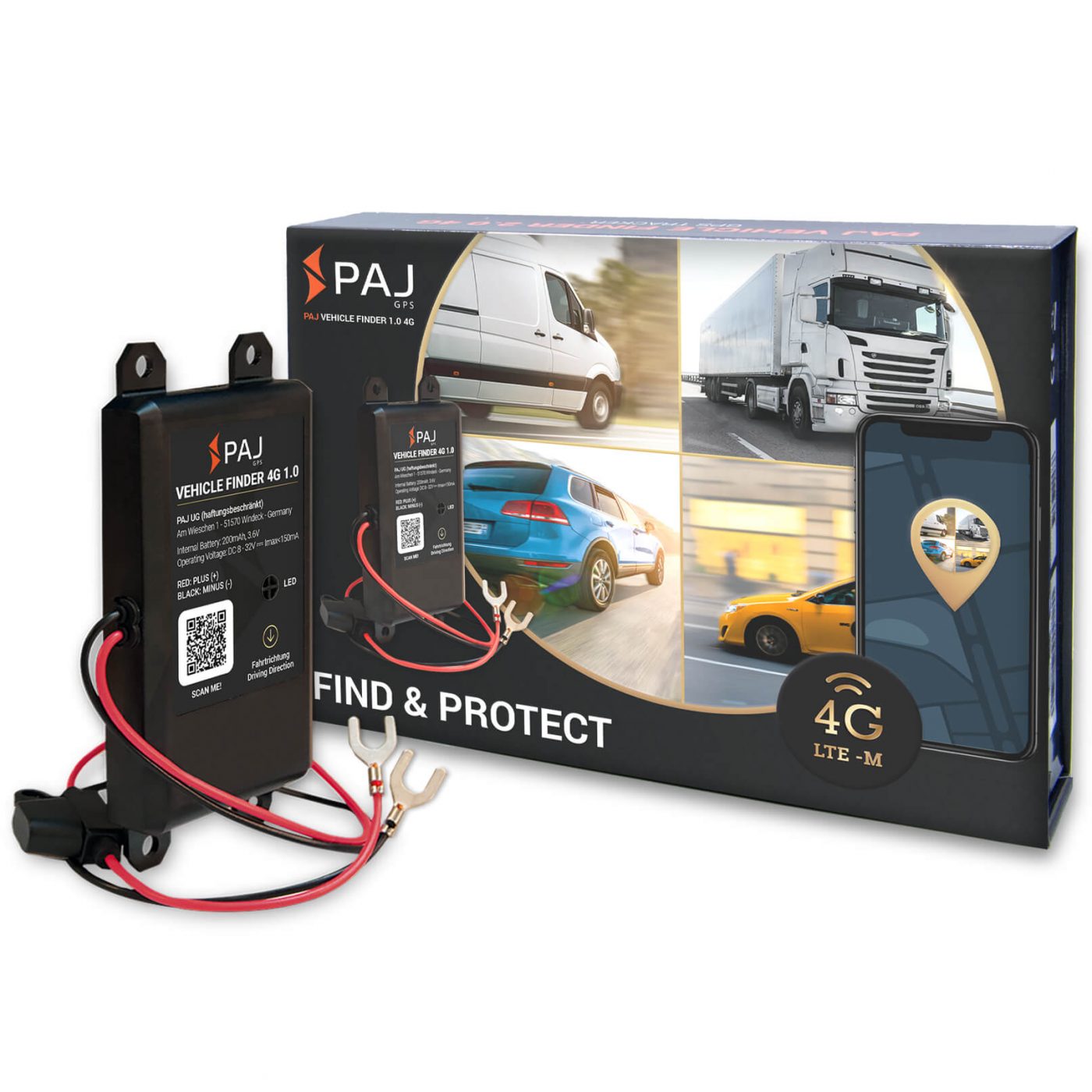

Scope of delivery

  1. VEHICLE Finder 4G 1.0
  2. Operating instructions
  3. M2M SIM-card (is already in the FINDER)
  4. FINDER-Portal from PAJ from only 4,17 € per month

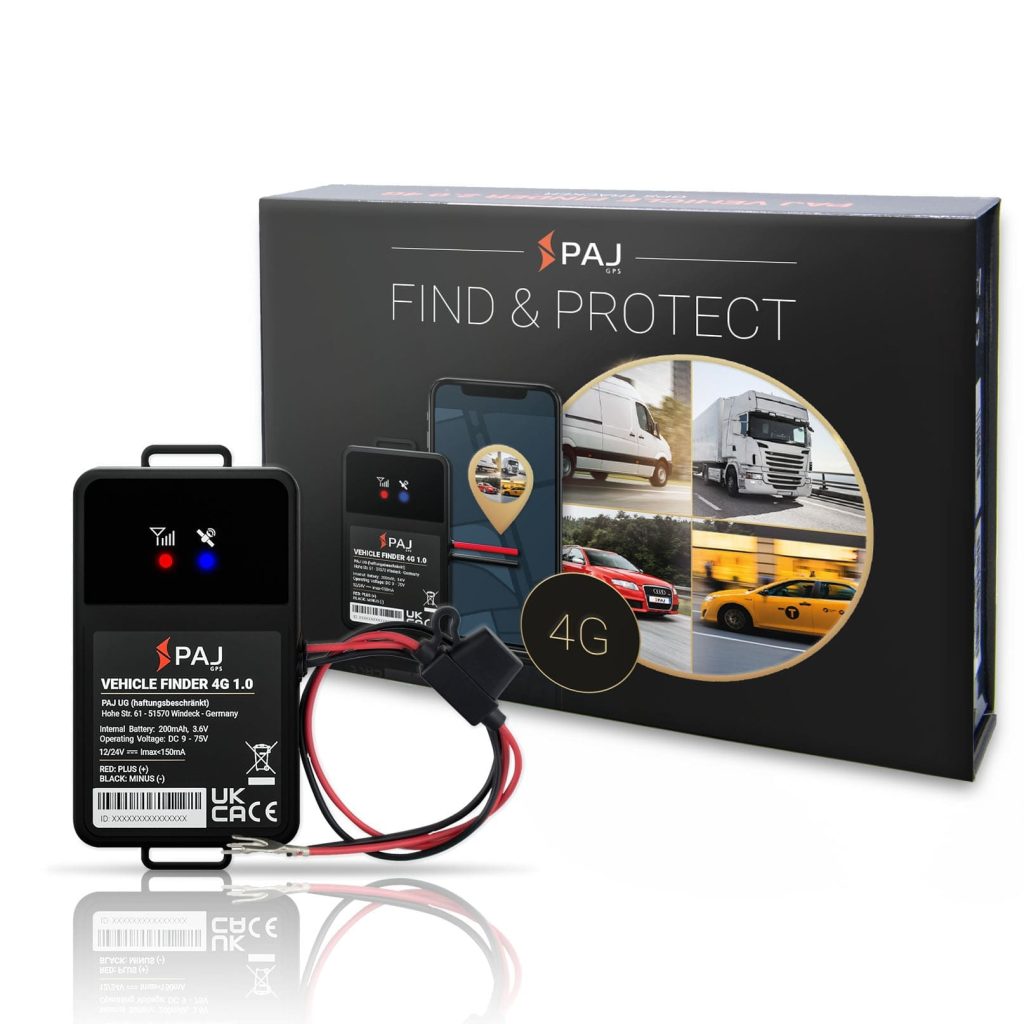

Mainpicture VEHICLE Finder 4G 1.0 PAJ GPS

SIM card network coverage

  • Always looks for the BEST connection
  • Outstanding 4G network coverage
  • Worldwide positioning in over 100 countries included
  • No more manual SIM card charging necessary
  • No more cumbersome activations required
  • Protection against SIM card misuse

Areas of application

For vehicles

Gps for truckers

For trucks

For transporters

For caravans and motorhomes

Download

Note: You can open the operating instructions and all other materials by clicking on the respective image of the finder.
